Subsea Ball, Gate, Check and X-mas trees and SSIV manifolds

Breda Energia Subsea Valves

BREDA ENERGIA has more than 60 years of experience providing specialist products and services to the Oil & Gas Industry worldwide.

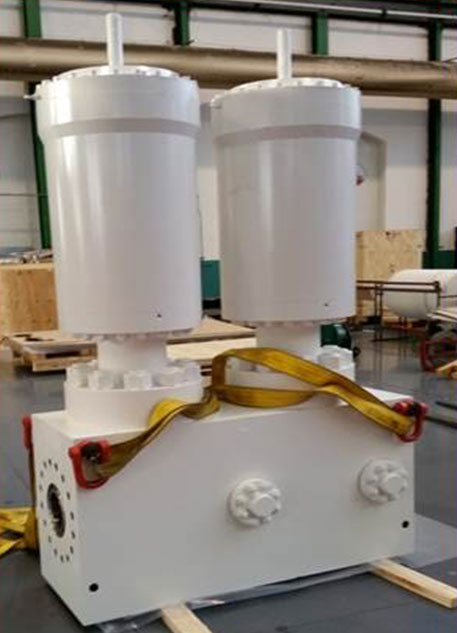

SSIV Package for
Petrobel Egypt

Complete PLEM for
AGIP NIGERIA

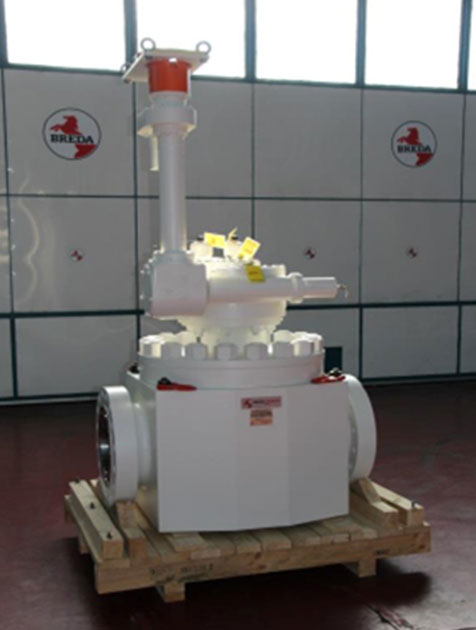

13 5/8”, API 5K to Shell North Sea

SPECIFICATION

SPECIFICATION
Valve Design Slab gate / Double expanding gate
Pressure rating API 6D: ANSI 150 to 2500

API 6A: API 2,000 to 20,000 psi
Temperature -60°C to + 200°C
Water depths To 1500m
Bore sizes API 6D: 2” to 48”

API 6A: 1.13/16” to 9”
Material options Carbon and low alloy steels, stainless steels,

low temperature carbon steel, duplex, super duplex, Inconel
Actuation Hydraulic and Pneumatic (double acting and spring return), Electric, Manual and ROV
Standards API 6A, API 6D, API 17D, API 6DSS, ISO 10423, ISO 13628, ISO 14313, ISO 14723

Through Conduit Subsea Gate Valves

SPECIFICATION

Valve Design Slab gate / Double expanding gate
Pressure rating API 6D: ANSI 150 to 2500
API 6A: API 2,000 to 20,000 psi
Temperature -60°C to + 200°C
Water depths To 1500m
Bore sizes API 6D: 2” to 48”
API 6A: 1.13/16” to 9”
Material options Carbon and low alloy steels, stainless steels,
low temperature carbon steel, duplex,
super duplex, Inconel
Actuation Hydraulic and Pneumatic (double acting
and spring return), Electric, Manual
and ROV
Standards API 6A, API 6D, API 17D, API 6DSS,
ISO 10423, ISO 13628, ISO 14313,
ISO 14723

Through Conduit Subsea Gate Valves

SPECIFICATION

Valve Design Plug & Cage / Cage & Sleeve
Pressure rating API 6D: ANSI 150 to 2500, API 6A: API 2,000 to 15,000 psi
Temperature -60°C to + 200°C
Water depths To 1500m
Bore sizes API 6D: 1/2” to 24”
API 6A: 1.13/16” to 7.1/16”
Max. Orifice 7.2/64”
Material options Carbon and low alloy steels, stainless steels, low temperature carbon steel, duplex,super duplex, Inconel
Actuation Hydraulic, Pneumatic (double acting and spring return), Electric, Manual and ROV
Standards API 6A, API 17D, ISO 10423, ISO 13628

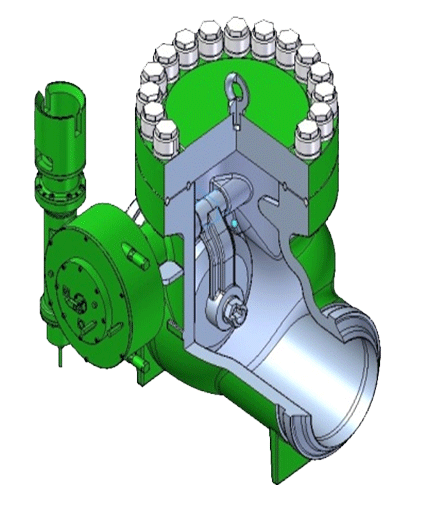

Check Valves

SPECIFICATION

Valve Design Swing check
Pressure rating API 6D: ANSI 150 to 2500, API 6A: API 2,000 to 15,000 psi
Temperature -60°C to + 200°C
Water depths To 1500m
Bore sizes API 6D: 2” to 24” ,  API 6A: 1.13/16” to 7.1/16”
Material options Carbon and low alloy steels, stainless steels,
low temperature carbon steel, duplex,
super duplex, Inconel
Actuation Electric, Manual and ROV
Standards API 6A, API 6D, API 17D, API 6DSS,
ISO 10423, ISO 13628, ISO 14313,
ISO 14723

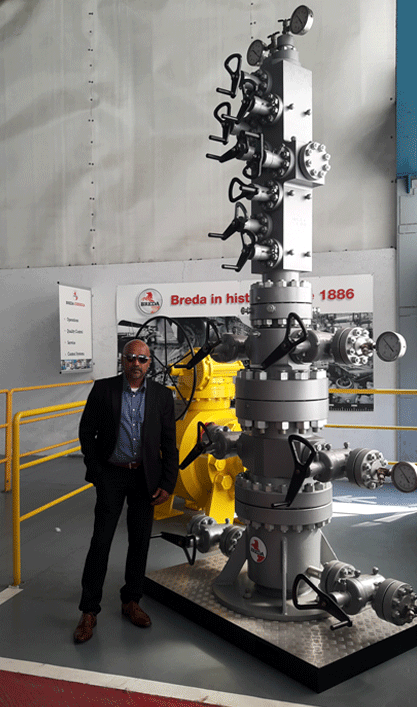

Breda Energia Wellhead Equipments & Xmas Tree Valves

Wellheads and Xmas-trees with pressure rating up to 15000 psi have been successfully introduced in the market since 1978.

BREDA ENERGIA wellhead configurations include: conventional wellheads, compact wellheads, split compact wellheads, ranging from low pressure systems to HP/HT wellheads and Xmas-trees.
